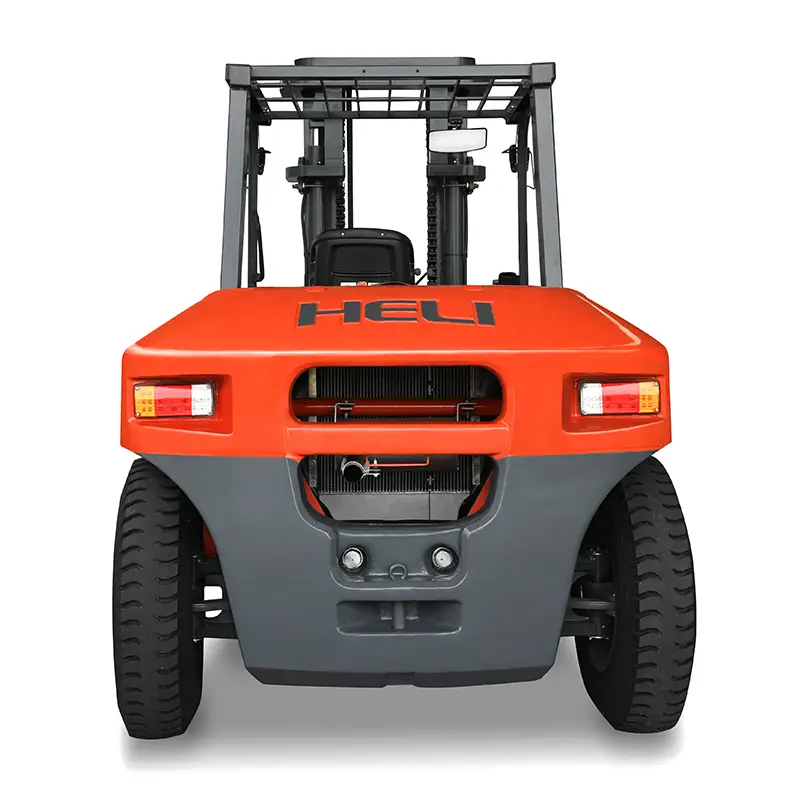

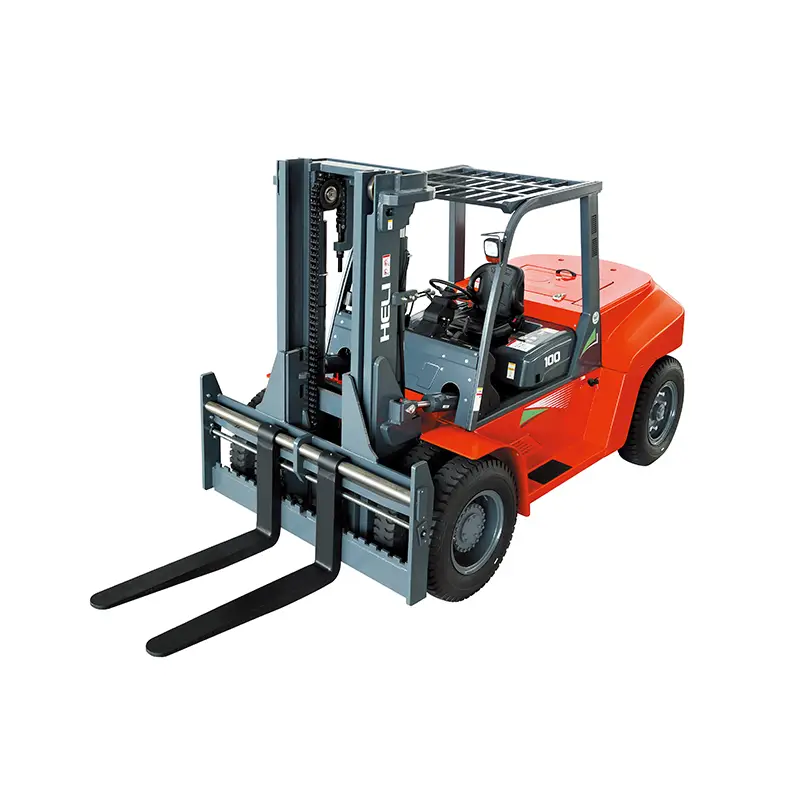

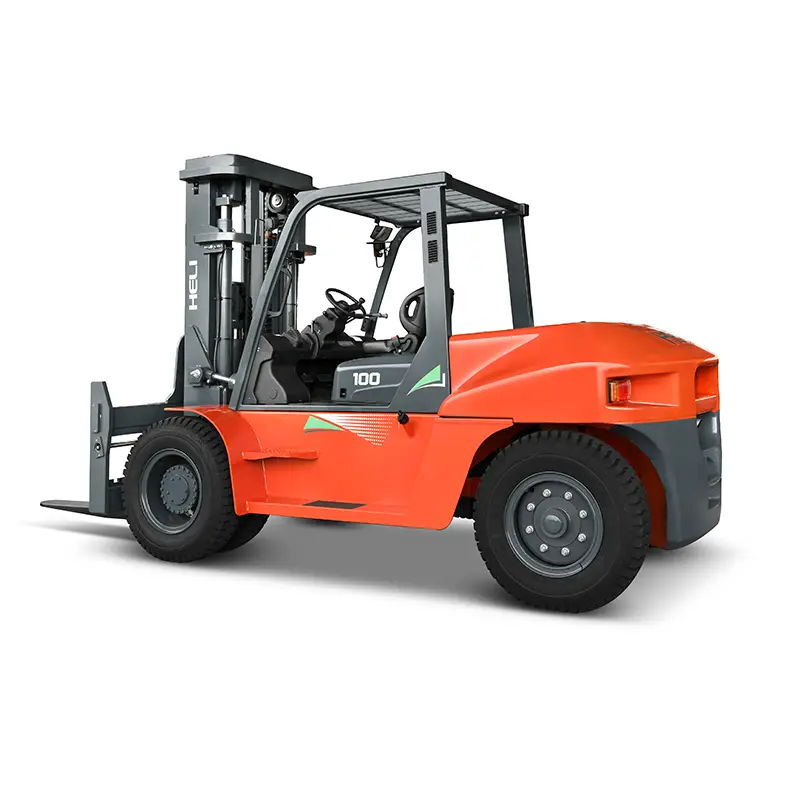

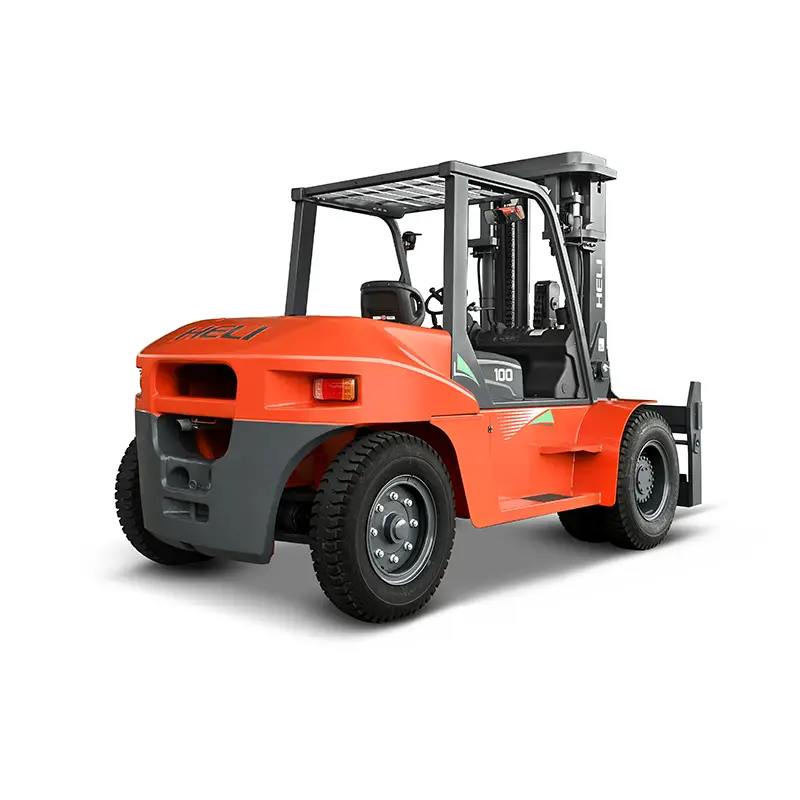

5-10t G Series Diesel

SKU:
  1. The core components of frame, mast and overhead guard adopt CAE forward design to ensure the strength of the whole truck and make the whole truck stronger.
  2. Independent integrated electronic control box features waterproof, dust-proof, heat insulation and oil pollution isolation and thus reduce the failure rate of electrical components and improve the convenience of maintenance.
  3. The maximum opening angle of the hood reaches to 80 degrees, which provides a spacious space for inspection and maintenance.



Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

Add to Enquiry
Loading...

Parameter

Model Designation CP(C)D50/

CP(Q)(Y)D50

 CP(C)D60/

CP(Q)(Y)D60

 CP(C)D70/

CP(Q)(Y)D70

 CPCD85 CPCD100
Load Capacity kg 5000 6000 7000 8500 10000
Load Center mm 600
Wheel base 1450 1450 1450 1650 1650
Overall height(overhead guard) mm 2140 2140 2140 2150 2150
Overall length(without fork) mm 2277 2281 2299 2580 2638
Overall width mm 1070 1070 1070 1150 1150
Min.outside turning radius mm 1875 1910 1930 2170 2240

Applications

Related Products

12-16t Diesel Forklift Truck

  1. Electric tilting cab, convenient maintenance;
  2. Large arc cab front windshield, wide field of vision. Standard with air conditioner, driving comfort is greatly improved;
  3. Multi-functional control dest, and seats can be adjusted in four directions;
  4. The chasis and lifting system structural parts are analyzed by CAE, which are safe and reliable;
  5. Add the oil level meter of the fuel and hydraulic oil box, reasonable arrangement of the air filter and fuel filter position, easy maintenance.

5-10t G3 Series Diesel Forklift Truck

  1. New appearance, fashionable atmosphere, taking into account aesthetics and function;;
  2. ZF manual transmission electro-hydraulic proportional control ensures efficient transmission operation;
  3. Wet axle with long maintenance cycle, convenient maintenance;
  4. Fingertip operating system, comfortable and convenient operation, reducing operation fatigue;
  5. Electronic parking brake, preventing accidental contact, always guarding driving safety.
  Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

5-10t K2 Series Diesel Forklift Truck

  1. Hydraulic power-assisted braking system, braking performance is more stable and reliable;
  2. Large LCD CAN bus instrumentation to fully monitor the forklift status;
  3. Standard with a full set of LED lamps, energy saving and environmental protection, long service life;
  4. Optimized design of double thread locking mechanism, more convenient adjustment;
  5. Comprehensively upgraded new intelligent shift system, preventing second gear start.
  6. The forklift has abundant power to meet the needs of multi-scenario test.
  Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

4-5t K2 Series Diesel

  1. Hydraulic power-assisted braking system, braking performance is more stable and reliable;
  2. Large LCD CAN bus instrumentation to fully monitor the forklift status;
  3. Standard with a full set of LED lamps, energy saving and environmental protection, long service life;
  4. Optimized design of double thread locking mechanism, more convenient adjustment;
  5. Comprehensively upgraded new intelligent shift system, preventing second gear start.
  6. The forklift has abundant power to meet the needs of multi-scenario test.
  Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

4-5.5t G3 Series Diesel

  1. Brand new appearance design, fashionable and atmospheric, balancing aesthetics and functionality;
  2. Stronger acceleration, climbing, and traction performance, faster lifting and lowering speeds, significantly improved work efficiency;
  3. Intelligent instruments monitor the status of the forklift in real-time, ensuring safety and reliability; Soft connected intelligent gearbox for more comfortable operation;
  4. Adoption of load sensing steering system and dual-pump combined flow hydraulic system reduces forklift energy consumption by 5%;
  5. Forward CAE simulation analysis, 500h strengthening test of key components and the entire machine, with better reliability;
  6. The hood is opened at a large angle, and the key maintenance parts adopt modular design, making maintenance convenient and efficient;
  7. Equipped with domestic Yuchai power to meet Euro V emission, strong power and high cost performance.
  Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.

2-3.5t G3 Series Diesel

  1. The forklift has strong power;
  2. Wet brake drive axles developed by Heli independently, ensuring stable operation under extreme working conditions;
  3. The suspended transmission system effectively isolates vibration transmission and provides more comfortable driving experience;
  4. Enhanced OPS control system that meets the latest European standards, when the driver leaves the seat, the forklift’s traveling and mast lifting and lowering functions entire locked, effectively protecting driver safety;
  5. Customized and exclusive speed control system to meet personalized needs (optional);
  6. The forklift equipped with standard functions to prevent gear start and prevent engine secondary ignition,The security is upgraded;
  7. Intelligent instrument fully monitoring the status of the forklift, can realize card swiping, password activation, maintenance information reminder, and cooperate with HELI smart fleet management system to make forklift management more efficient and flexible.
