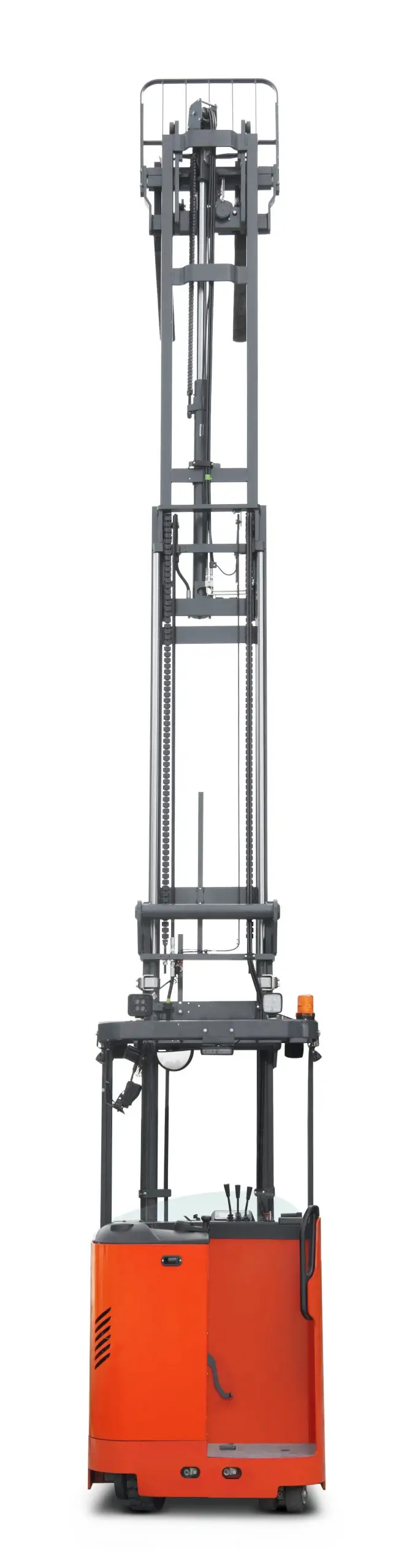

1.5-2.5t G2 Series Stand-up Type Reach Truck

SKU:

1. Appearance innovation design: continuing the characteristics of serialization and familialization.
2. The lifting speed, forward and backward movement speed and climbing ability are upgraded which provides more outstanding work efficiency.
3. EPS electronic power steering, providing the forklift with lightweight and flexible. Efficient and quiet operation.
4. Equipped with five sets of independent braking system and descending OPS, more secure; Mast lifting more than 5m to limit the hydraulic operating speed, improve the stability of the mast high level operation.
5. Optional built-in charger, rubber tires (drive wheels) and endurance plate roof, lights and other configurations.
6. Efficient and convenient maintenance: the snap-on split hood is easy to disassemble and the detachable side door increases the maintenance space.

Add to Enquiry
Loading...

Parameter

Model Designation CQD15 CQD18 CQD20 CQD25
Load Capacity kg 1500 1800 2000 2500
Load Center mm 500 500 500 500
Max. lifting height mm 6750 6750 7400 7400
Min. outside turning radius mm 1615/1590 1775/1730 1795 1965
Battery Voltage V 48/80 48/80 48/80 48/80
Controller ZAPI
Battery Lithium battery
Other Optional: Lead-acid battery Optional: Lead-acid battery Optional: Lead-acid battery Optional: Lead-acid battery
