1.4-1.8t G Series Stand-up Type Reach Truck

SKU:

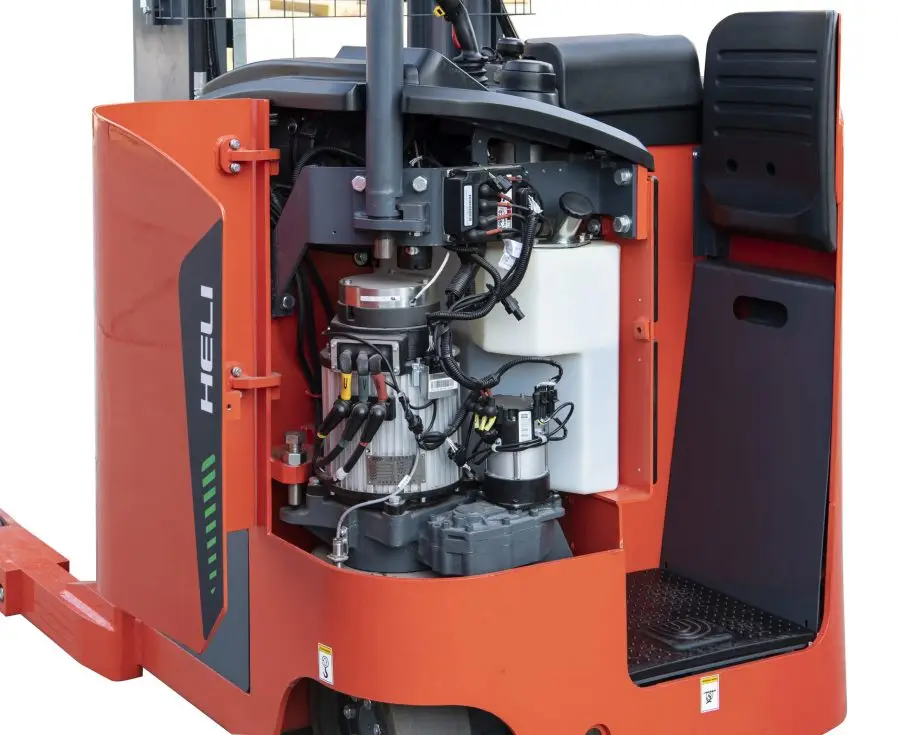

1. Battery can be taken from side, convenient to replacement;

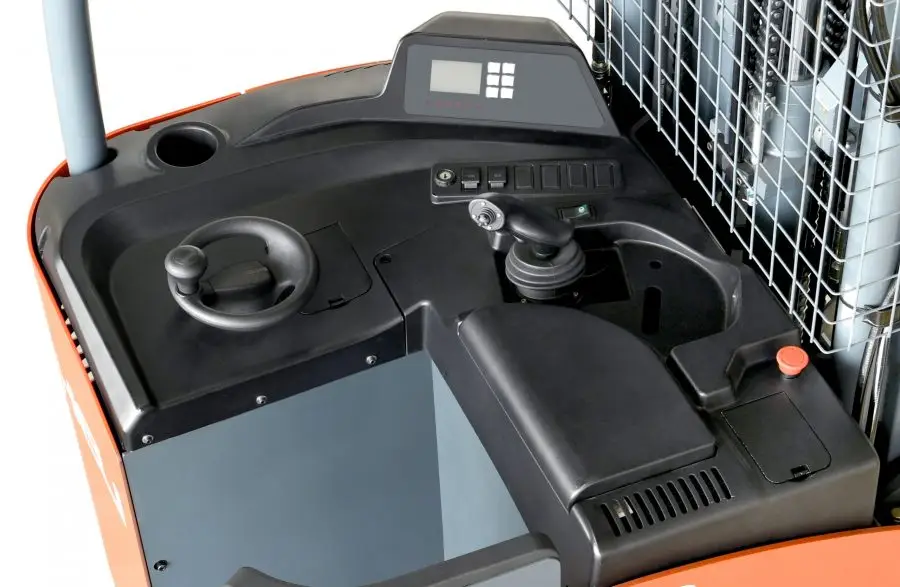

2. Intelligent integrated control handle, comfortable operation;
3. Full proportional hydraulic control, more stable work, more precise control;
4. Three speed mode to adapt different occasions and working conditions;

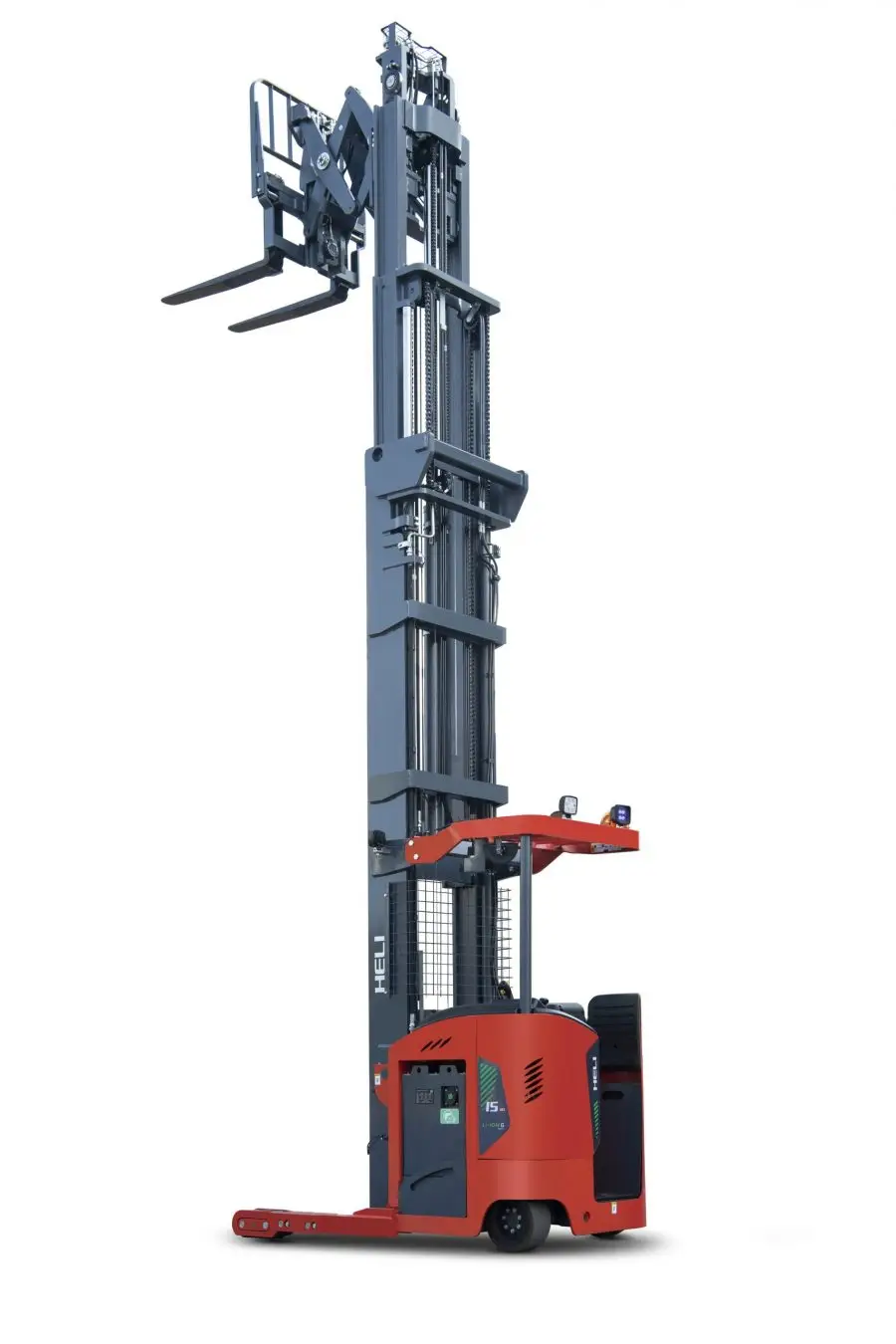

5. More loading capacity at high level and stability;
6. Large circular arc roof guard frame, suitable angle of the grill plate, and wide view at the top;
7. Driver is fully protected by the chasis.

Add to Enquiry
Loading...

Parameter

Model Designation CQD14X2 CQD16X1 CQD18X1
Load Capacity kg 1350 1500 1800
Load Center mm 600 600 600
Min. outside turning radius mm 1838/1874/1936 1695 1745
Reach stroke mm 1080 600 600
Battery Voltage V 48 48 48
Controller ZAPI ZAPI ZAPI
Battery Lithium battery Lithium battery Lithium battery
Other Double scissor
Optional: Lead-acid battery		 Optional: Lead-acid battery Optional: Lead-acid battery
