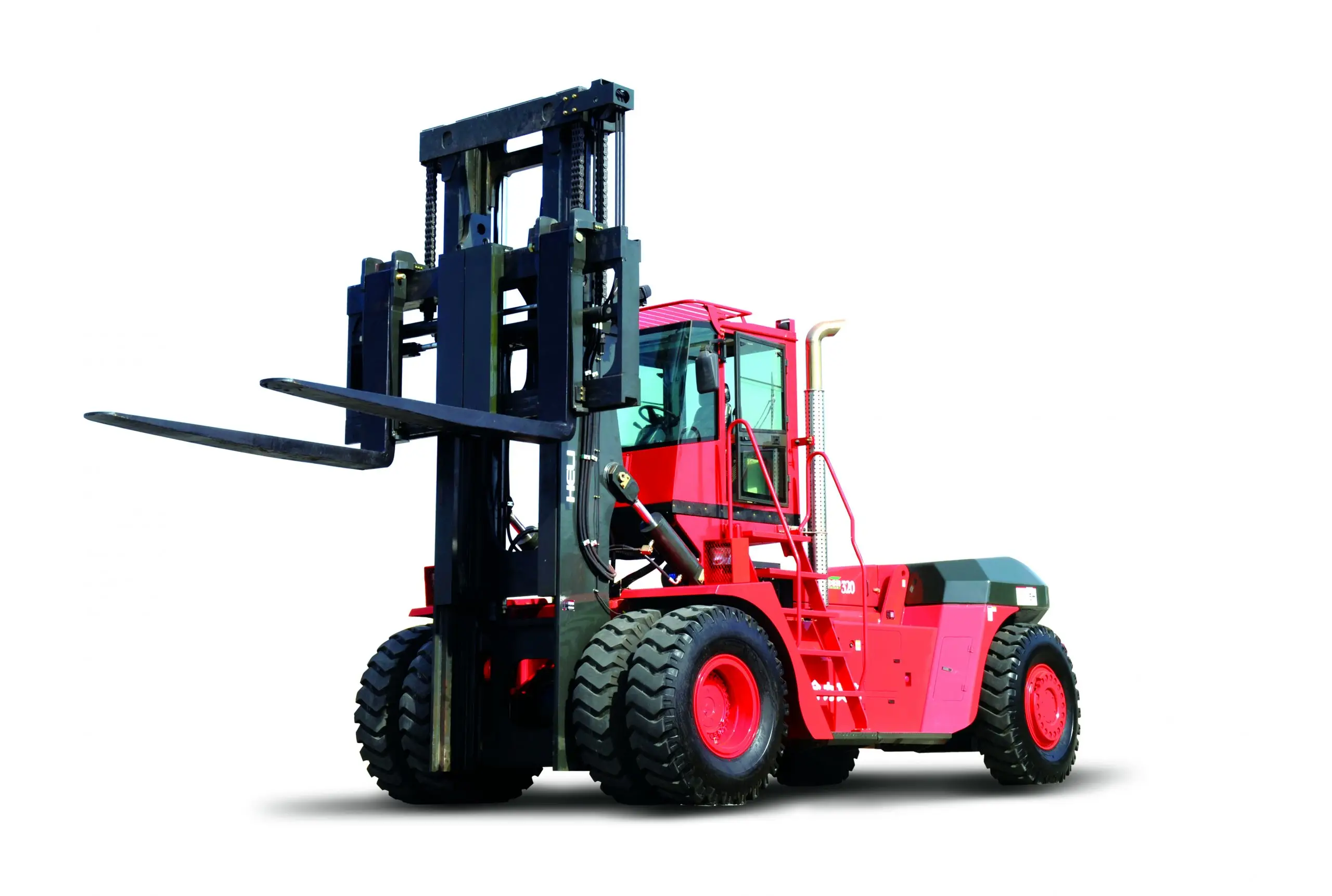

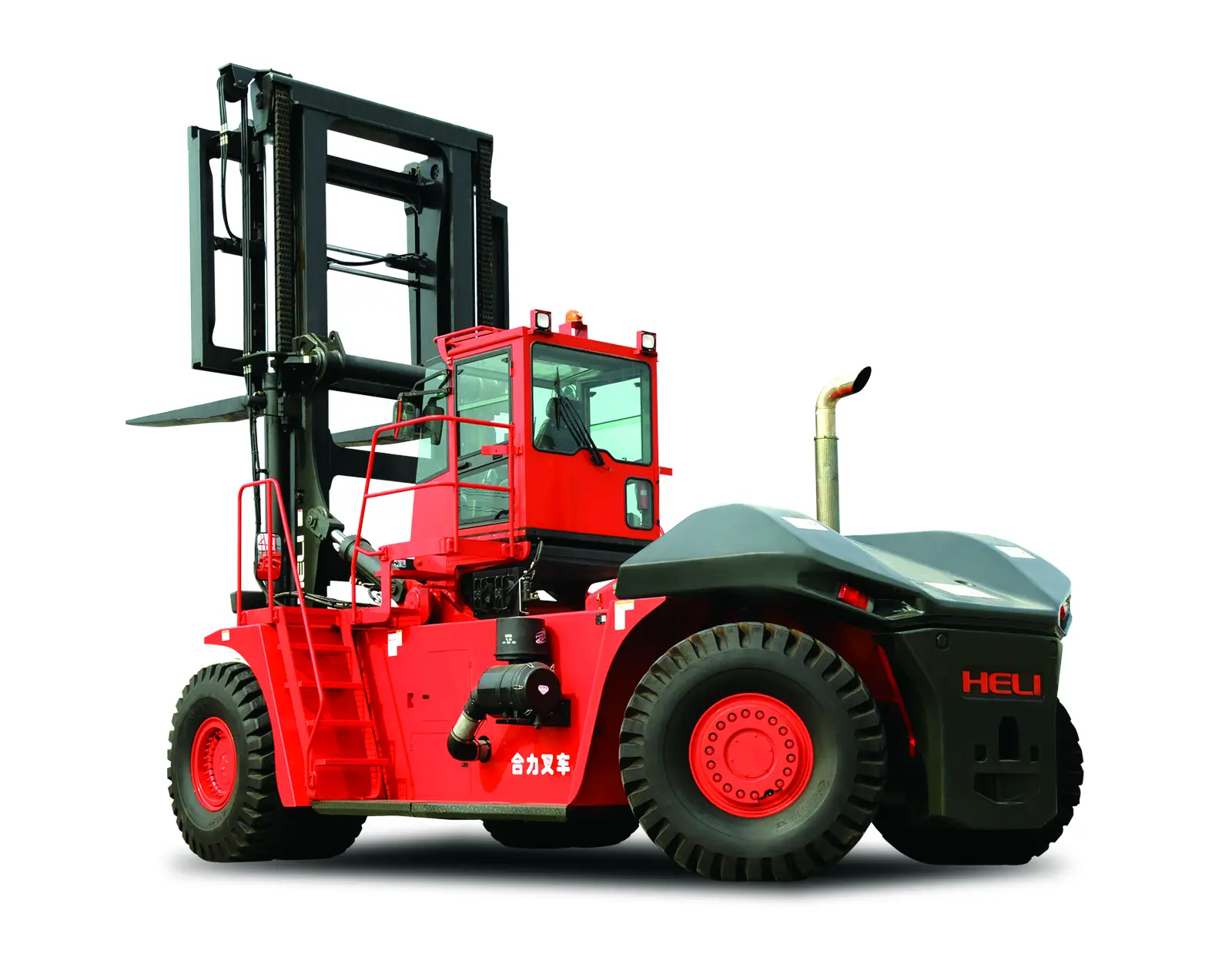

20-46t Diesel Forklift Truck

SKU:

1. Manual and/or automatic tipping cab and large angle tipping hood facilitates routine maintenance and inspection;
2. The structure design of separated oil tanks for braking and hydraulic ensures the cleanliness of oil and reduces the failure rate of hydraulic system;
3. The standard configuration of OPS can lock truck travelling function when the operator leaves the seat and thus to improve truck safety;
4. Large arc front windshield design brings excellent operation view and improves driving safety.

Add to Enquiry
Loading...

Parameter

Model designation CPCD200 CPCD250 CPCD280 CPCD300 CPCD320 CPCD350 CPCD380 CPCD400 CPCD420
Load capacity kg 20000 25000 28000 30000 32000 35000 38000 40000 42000
Load center mm 1200 1200 1200 1200 1200 1200 1200 1200 1200
Max.lifting height mm 8000 8000 8000 8000 8000 8000 8000 8000 8000
